GE | SKU: GE OEC9800

GE OEC 9800 C-Arm

Name: GE OEC 9800 C-Arm
Brand: GE
SKU: GE OEC9800
Availability: InStock

Delivery and Shipping

MED offers fast, reliable shipping services, with tracking and dedicated support every step of the way. Whether you're ordering a single device or outfitting an entire facility, you can trust MED to deliver safely, on schedule, and with care.

Warranty and returns

Every MED Refurbished unit ships with a written MED warranty covering parts and labor. Terms run from 90 days to 24 months depending on the equipment and are stated on your quote. Extended coverage is available on most systems. Your warranty is with MED: one point of accountability from quote through the life of the coverage.

30-day acceptance: if a unit does not perform as quoted on arrival, MED makes it right. See our Return Policies for details.

Trade in your current equipment

Have a unit to retire? Tell us what it is in your quote request. We value it against current market data and can remove it when we deliver. Any department, any modality.

Written MED warranty on every refurbished unit. Trade-ins accepted toward this purchase.

Request a quote on this model

Tell us the configuration and timeline you need. A MED specialist replies the same business day with availability, warranty and pricing. Purchase orders accepted.

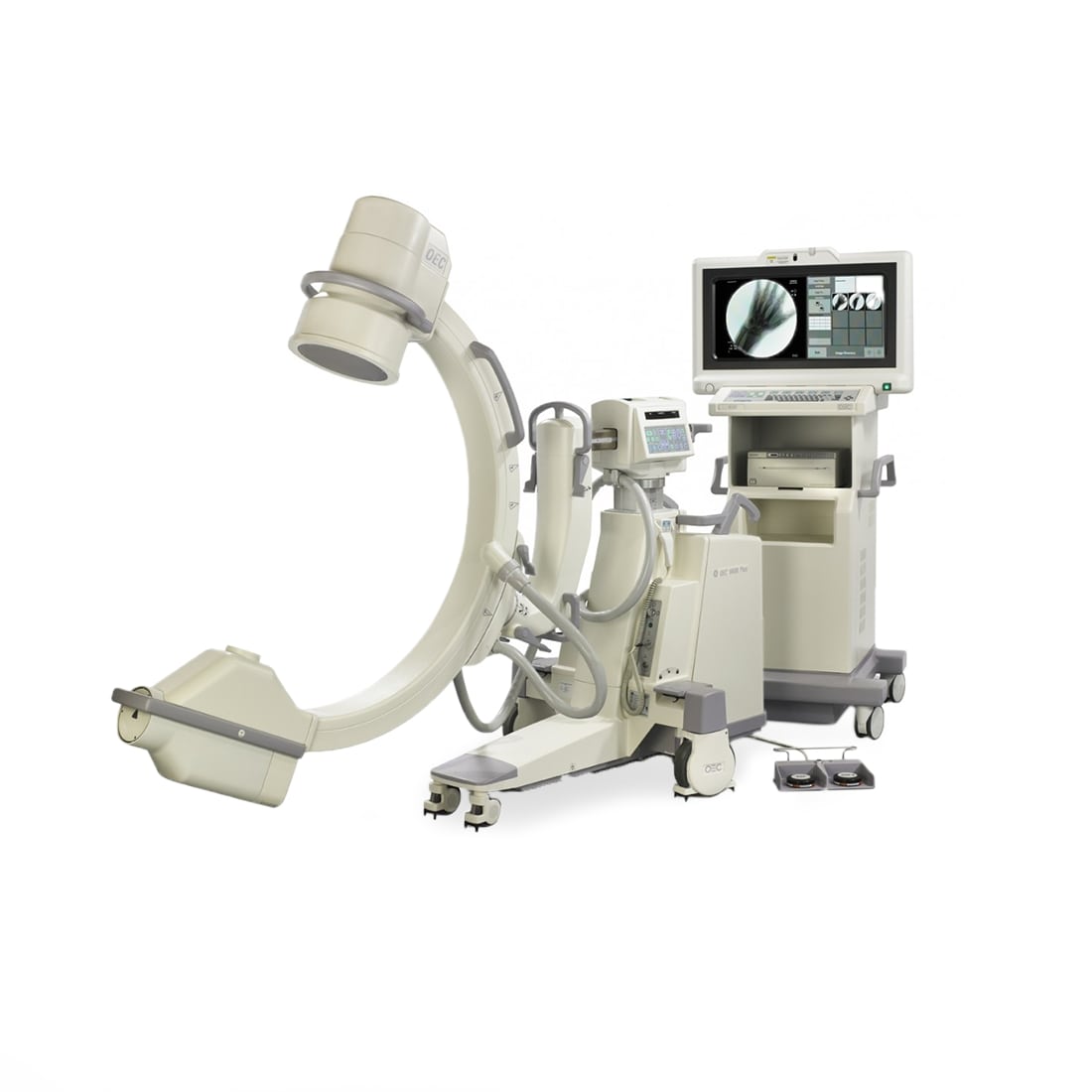

The GE OEC 9800 C-Arm is a mobile X-Ray imaging system which can be used for diagnostic and surgical applications. The 9800 combines flexibility, precision, agility, versatility, and power for enhanced utilization in the fields of Pain Management, General, Orthopedic, Vascular, Neurovascular, and Cardiac Surgeries.

The 9800 C-Arm can be used to perform diagnostic or interventional procedures in ER, OR, ICU, or pain management centers. It is equipped with a SmartView off-axis pivot joint for accurate and precise positioning. It is also provided with SmartMetal, SmartWindow, and AutoTrak Technology which can automatically adjust the contrast and brightness for increased image resolution.

The 9800 takes unparalleled film radiographs and fluoroscopic images by taking advantage of the improved Video Imaging System equipped with a Tri-mode Image Intensifier, and a 1004x1004-pixel, high-resolution video camera capable of 360-degree rotation and full-frame capture. The images can be previewed using dual 16-inch square-shaped video monitors equipped with ambient room light sensor and remote controls (window/level).

The C-Arm uses a high-frequency, 60-Hz, 4.0-kilowatt full-wave generator equipped with a patented energy buffer design for dynamic power utilization and improved imaging accuracy. The X-Ray Tube has a rotating anode, a focal spot that is in range of 0.3mm and 0.6mm, and a cooling fan that prolongs the utilization time of the medical device. The Collimator has dual opposing semi-transparent shutters for elliptical, round, and rectangular collimation, and can be controlled remotely from the C-Arm control panel.
